Description
7.5x zoom: extremely high zoom range
The SMZ745/745T boasts a 7.5x zoom that incorporates the Greenough optical system. The zoom range of 0.67x to 5x provides a broad observation range.
Superior 115 mm working distance
As well as high zoom ratio and magnification, the SMZ745/745T offers a long 115 mm working distance.

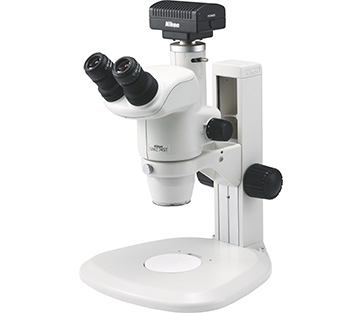

Trinocular optical head is ideal for monitoring and digital imaging (SMZ745T only)
The SMZ745T incorporates an optical path switching lever that enables easy switchover between eyepiece and camera. A Nikon Digital Sight series camera can be attached.
Three “A” design
The air-tight, anti-fungal, anti-electrostatic design makes the SMZ745 suitable for use in a range of working environments.
- *SMZ745T has an anti-fungal, anti-electrostatic design.
| Optical system | Greenough optical system |
|---|---|
| Total magnification | 3.35-300x (depending on eyepiece and auxiliary objective used) |
| Vertical tube (SMZ745T) | Built-in C-mount 0.55x magnification lens (F.N. 11), compatible with 2/3 in. or smaller CCD |
| Eyepiece tube | Fixed type |
| Eyepiece inclination | 45 ° |
| Interpupillary distance adjustment | 52-75 mm |
| Eyepieces (with diopter adjustment) | C-W 10xB (F.N. 22), C-W 15x (F.N. 16), C-W 20x (F.N. 12.5), C-W 30x (F.N. 7) |
| Zoom range | 0.67-5x |
| Zoom ratio | 7.5 : 1 |
| Auxiliary objectives | G-AL 0.5x (W.D. 211 mm), G-AL 0.7x (W.D. 150 mm), G-AL 1.5x (W.D. 61 mm), G-AL 2x (W.D. 43.5 mm) |
| Working distance | 115 mm (standard) |
| Weight | 1.6 kg (SMZ745) 1.8 kg (SMZ745T) |
- F.N.: Field Number
Dimensions
SMZ745
SMZ745T
