Description
Product Details:
| Place of Origin: | China |
|---|---|
| Brand Name: | UNICOMP |
| Certification: | CE, FDA |
| Model Number: | AX8500 |
Detailed Product Description
| Name: | Metal X Ray Machine | Tube Type: | Closed |
|---|---|---|---|
| Voltage/Current: | 90kv/200μA | Focal Spot Size: | 5μm |
| FPD Detector: | FPD | X-ray Leakage: | < 1uSv/h |

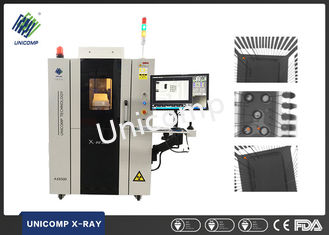

AX8500 Metal X Ray Machine for Micro BGA / chip on chop analysis
| Item | Definition | Specs |
| Motion Control System | Motion Control Mode | Mouse&Joystick&Keyboard |
| Max.Load Dimension | 500x500mm | |
| Max.Detection Dimension | 350x450mm | |
| Tilt Detection Angle | 60° | |
| X-Ray System | Tube Type | Closed |
| Voltage/Current | 100kv/200μA | |
| Focal Spot Size | 5μm | |
| FPD Detector | FPD | |
| Physical & Image Processing Parameters | Length x Width x Height | 1250 x 1300 x 1900 mm |
| Weight | 1500 kg | |
| Power | 2kW | |
| System Magnification | 500 x | |
| Leakage Dose | <1μSv/h |
Object Stage Control
1. by the spacebar to adjust stage speed: slow, constant and fast speed
2. Keyboard control X, Y, Z three-axis motion and inclined angle
3. The user can control the stage speed and angle programmatically
Basic Radiation Safety.
X-Ray system control functions.
X-Ray image processing software training.
Basic X-ray signature analysis training.
Hands-on sample analysis using your typical samples.
Training certificates for all attendees.
Inspection Images:
